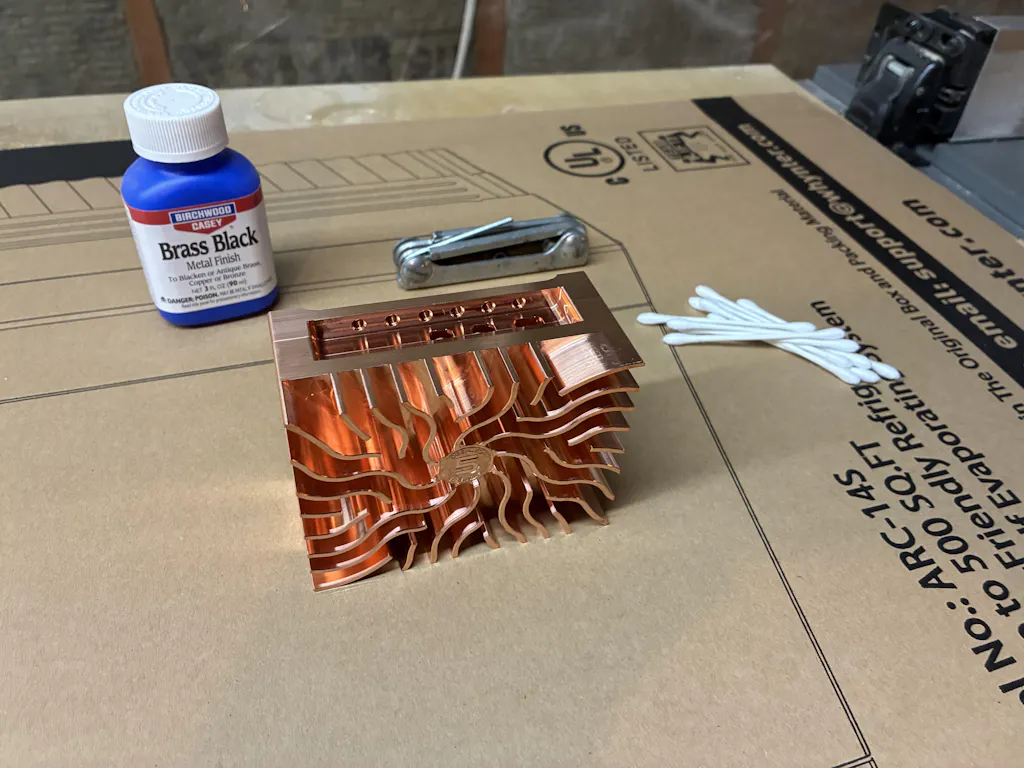

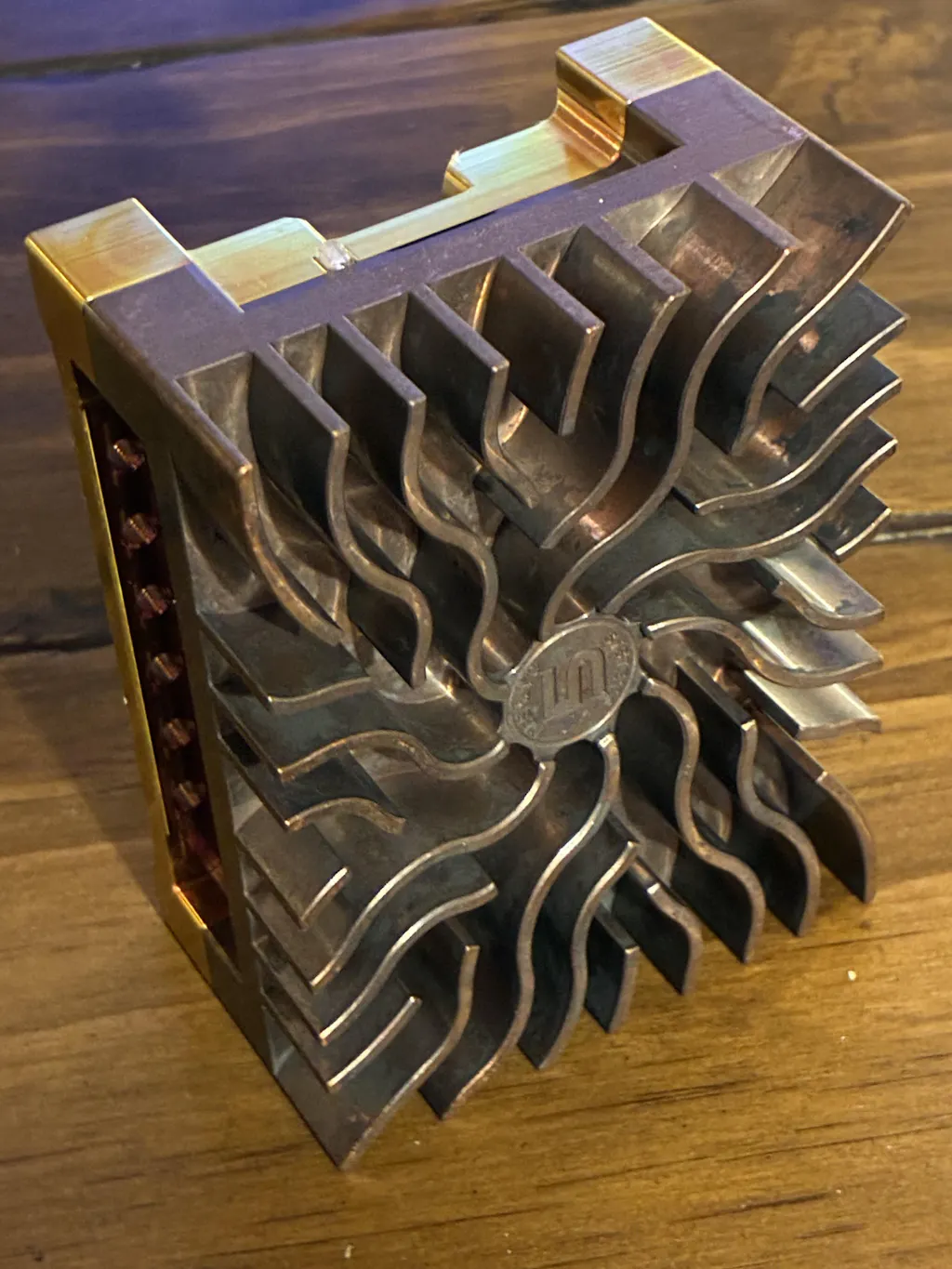

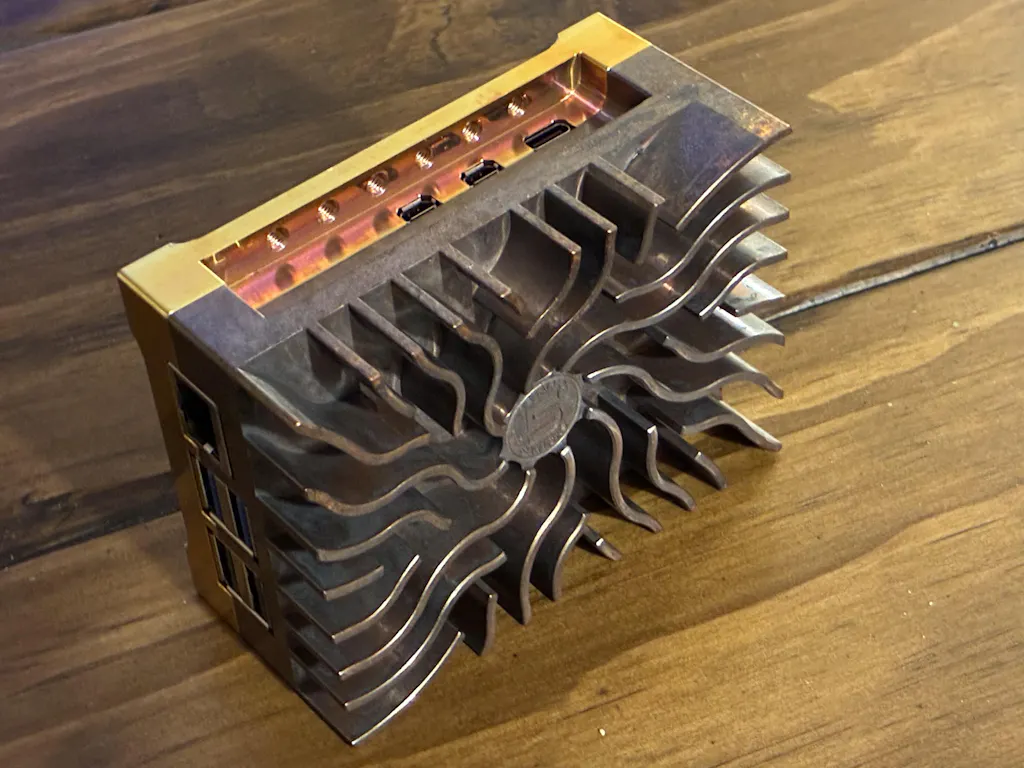

Solid Copper versions of our Galactic Case for the Raspberry Pi 5. This case features a new fin design offering massive passive cooling with an aerospace look and finish. There are precision threaded holes on the bottom of this case for mounting to DIN rail or bolting to other assemblies. A Polycarbonate button is designed into the case allowing actuation of the new power switch on the Raspberry Pi 5. It also transmits light from the indicator LEDs thru the button. The case has an opening allowing the GPIO 40 pin ribbon cable to pass out the side. There is a thin slot and internal relief cut into the upper housing to allow a ribbon cable to pass thru for the PCIe port. The CPU and Power Management IC have contact heat risers to pull heat into the housing. The Galactic Case is fully CNC machined from C110 99.9% pure copper bar and includes all Stainless Steel hardware, a packet of thermal grease, hex key for assembly, adhesive feet and super soft, electrically insulating ceramic/silicone thermal interface material for the Power Management IC riser. Our copper cases are pure bare copper and will develop a patina over time.
Features include...
- MASSIVE Passive cooling performance even when overclocked.
- Clean Modern Design
- Assembly bolts are on the bottom and hidden a cleaner appearance.
- Power button allowing Status LED to show thru as well.
- 75mm x 100mm outside dimensions
- 47mm overall height without feet attached. Feet add 1.4mm
- All Metric dimensions and hole spacing

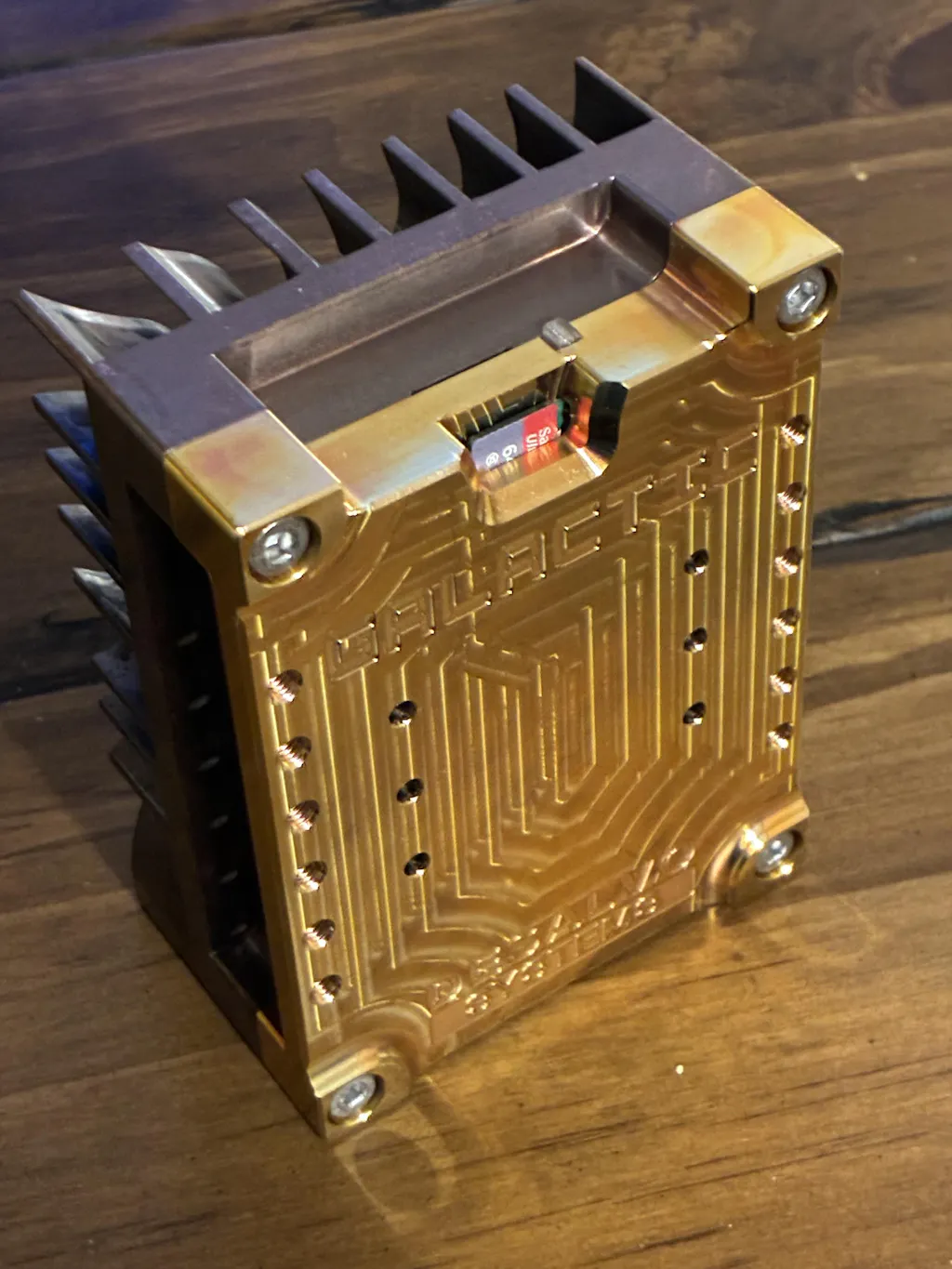

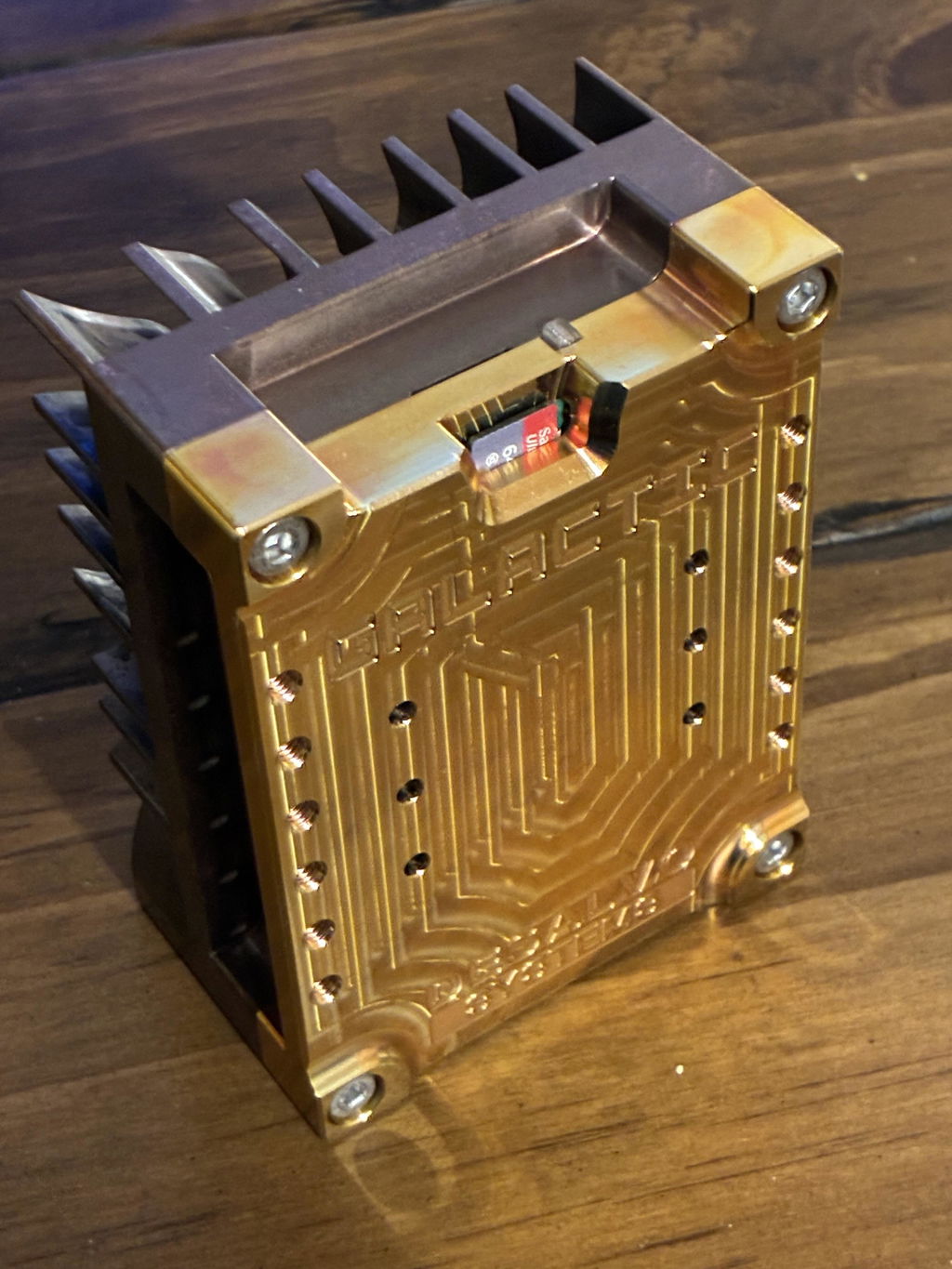

- 12 holes threaded to M4 x 0.7
- DIN rail mountable with 3.2mm holes to match rail clips (Phoenix Contact P/N 1201578. sold separately)
- Improved access to SD card over all of our previous designs.
- Slot for GPIO 40 pin cable.
- Rear thin slot for passing thru a ribbon cable for the PCIe port.
- Hefty construction weighing approximately 990g without the Pi mounted and 1037g fully assembled.
Included in the kit...
- Galactic Case to fit the Raspberry Pi model 5
- Allen Wrench for assembly
- (4) Stick on feet for the bottom
- (4) M4 Stainless Socket Head Cap Screws
- (4) 2-56 Stainless Philips head screws to attach the board internally
- (1) Piece of thermal interface material for use the PMIC riser.
- Heat Sink Compound
- Instructions
A Philips head screw driver is required to complete assembly.
Raspberry Pi 5 not included.
